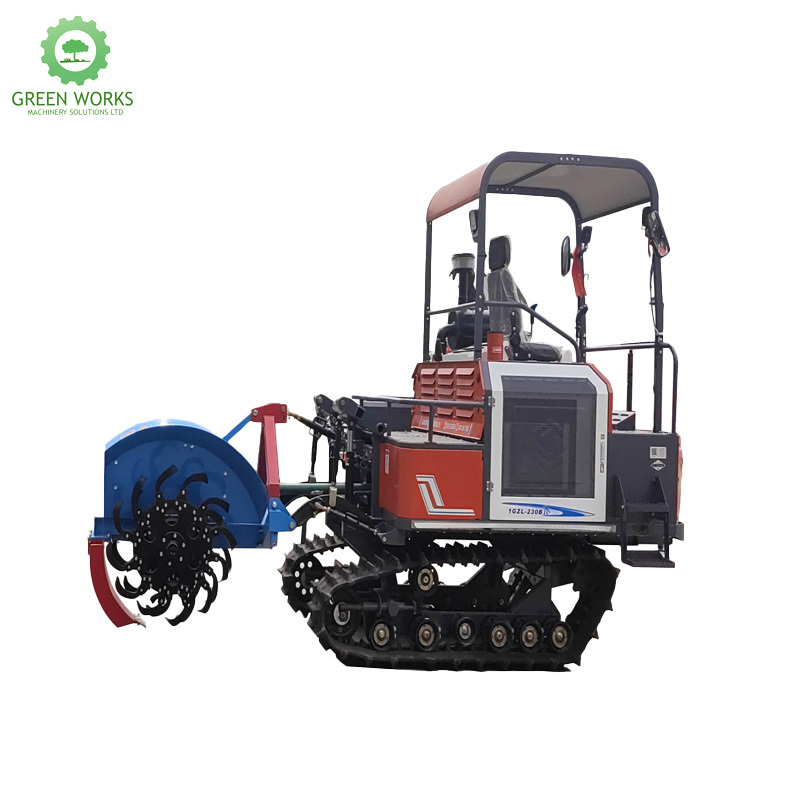

The product, specified as the 1GZL - 230B(G4) model, features overall dimensions of 3800×2480×2750 mm (Length×Width×Height). It is equipped with the V35 - 120C42 power model, which adopts a vertical direct - injection water - cooled four - stroke structure. This four - cylinder power unit delivers a rated power of 88.2 kW at a rated speed of 2400 r/min. With a working width of 230 cm and a standard working depth, it ensures efficient operation.

The transmission box offers 3 forward and 3 reverse gears, providing flexibility in movement. Weighing 2270 kg in total, the machine can achieve a productivity of 0.4 - 0.5 h㎡ per working hour while maintaining a fuel consumption of ≤15 kg/h㎡, making it highly cost - effective. The minimum ground clearance of 380 mm allows it to navigate various terrains smoothly.

The rotary tillage device is connected via a three - point hitch, and the working parts are driven by side - edge gear transmission. The engine and clutch are linked by a belt, and the friction plate brake ensures safe operation. The blade roller is equipped with 102 IT175 rotary tillage blades. Additionally, the track system, with a track width of 450 mm, a track length of 1200 mm, a pitch of 90 mm, and 53 track links, enhances traction and stability, making it an ideal choice for a wide range of agricultural tasks.
